VISION-Q LED work lamp 70W with 140 degree beam angle - BL5612S-140D

The VISION-Q 70W LED Work Lamp delivers exceptional illumination with a remarkable 140° beam angle, providing extensive coverage ideal for close-range tasks in off-road, agricultural, and industrial settings. With a high-output 9320-lumen cold white light and a long lifespan of over 50,000 hours, this work lamp exemplifies VISION-Q’s commitment to producing high-performance, long-lasting lighting solutions. Its wide-angle beam ensures nothing goes unseen, making it an essential tool for those who require comprehensive visibility on the job.

General Features

• Housing: Powder-coated aluminium for durability and corrosion resistance
• Lens Material: PMMA finish for impact resistance and clear light diffusion
• Connector: Includes Deutsch DT 2-pin connector with a 63 cm cable for easy installation
• LEDs: 56 LUMILEDS with individual lenses for enhanced light spread
• Lifespan: Over 50,000 hours for reliable, long-term use
• Adjustability: Fully adjustable for versatile positioning
• IP Rating: IP68, providing complete protection against dust and water
• EMC Certification: CISPR Class 3 for radio interference prevention
• E-marking: R10 approved for road compliance

Technical Specifications

• Light Intensity: 9320 lumens for strong, clear illumination
• Light Colour: Cool white
• Colour Temperature: 6000K, providing bright, daylight-like clarity
• Beam Angle: 140° for wide, even coverage at close range

Electrical Specifications

• Power Output: 70W
• Voltage Range: 10-32V, suitable for various vehicle electrical systems

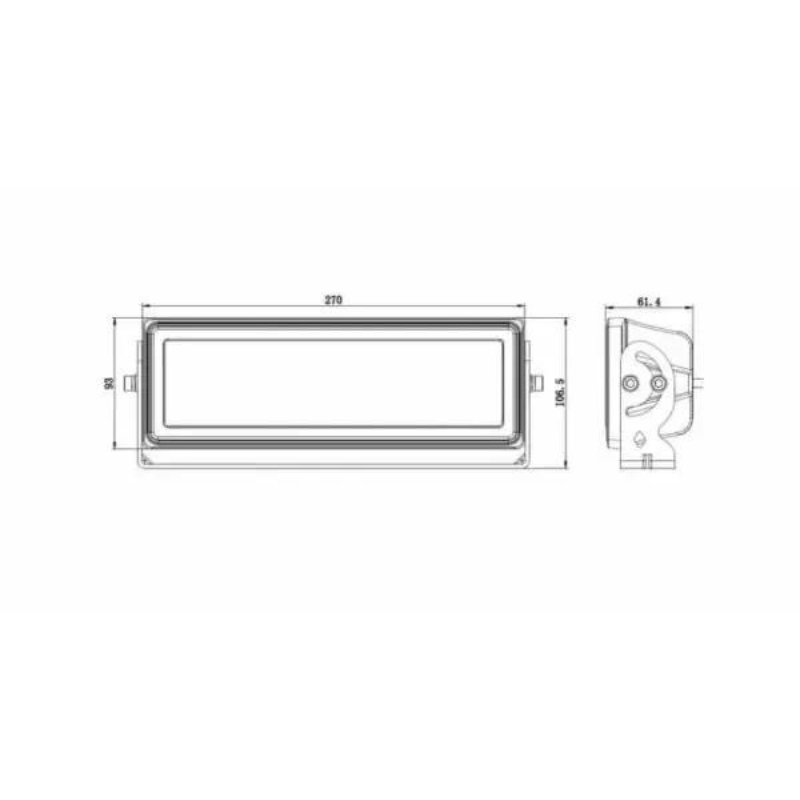

Dimensions (in mm)

• Lamp Width: 270 mm
• Lamp Height: 106.5 mm
• Lamp Depth: 61 mm

A Unique 70W Work Lamp with Exceptional Beam Angle

The VISION-Q work lamp is equipped with 56 LUMILEDS, each featuring its own mini lens, creating an expansive 140° beam angle. This unique design maximises short-range visibility, projecting 9320 lumens of crisp, cool white light to ensure nothing escapes the user’s view. This high intensity reduces eye strain, minimising fatigue and enhancing comfort during extended use.

Enhanced Comfort and High-Performance Design

The wide-angle light output of this work lamp prevents squinting or straining, allowing the user to work comfortably for longer periods. With EMC-rated components to eliminate radio interference, it also allows for uninterrupted radio use, creating a productive and enjoyable work environment.

High-Quality Build for Lasting Performance

With features like a powder-coated aluminium housing, waterproof IP68 rating, and a durable PMMA lens finish, the VISION-Q 70W LED Work Lamp is built to excel in all conditions. Adjustable in all directions and suitable for both indoor and outdoor use, this lamp is an outstanding addition for professionals requiring dependable, high-quality illumination. With more than 50,000 hours of operation, this lamp not only provides exceptional lighting but is also a solid long-term investment.

As a top performer in our range, the VISION-Q 70W work lamp ensures you have powerful, wide-angle lighting when and where you need it most.
