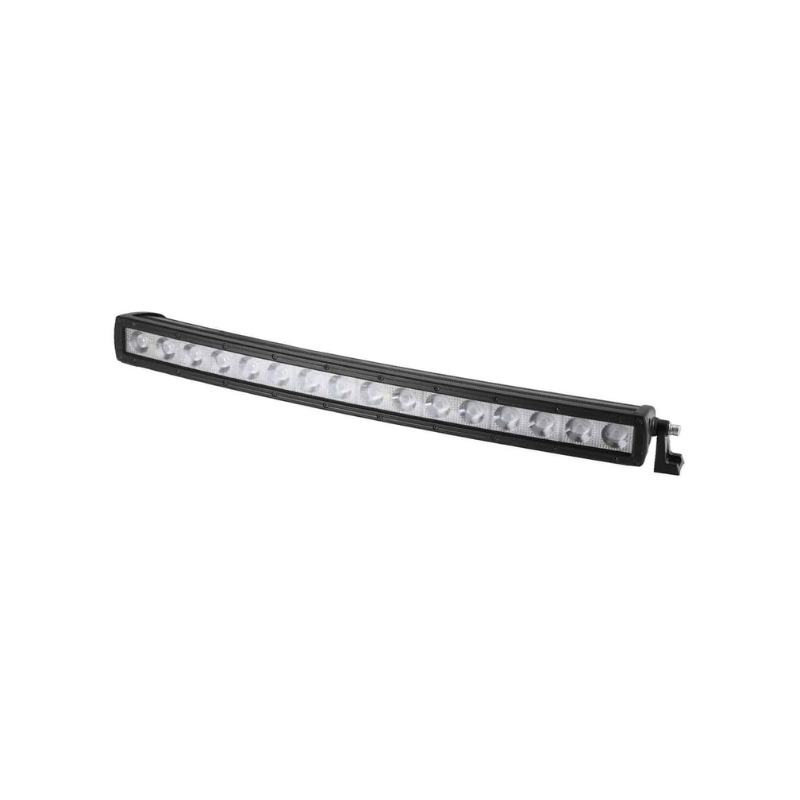

VISION-Q LED Lightbar 160W White/Amber 14,400 Lumen - BL1610CS-AW

The Vision-Q 160W LED Bar offers a unique dual-colour lighting solution with white and amber LEDs, making it a versatile choice for agricultural machinery, motorhomes, and camper vans. With a powerful 14,400-lumen output, this LED bar enhances visibility and safety, perfect for working in low-light conditions or navigating remote areas. The amber light function is particularly useful in foggy or dusty environments, cutting through poor visibility conditions for improved clarity. Built to withstand challenging environments, the Vision-Q LED Bar combines high performance with durability, offering flexible mounting and robust waterproof construction.

General Features

• Functions: Dual-function white and amber lighting for maximum versatility, ideal for low-visibility situations
• Housing: Heavy-duty aluminium housing with a powder-coated finish to prevent corrosion
• Lens Material: PMMA lens for impact resistance and optimal light clarity
• Mounting Options: Bracket allows side or bottom mounting, fitting seamlessly on various vehicles, including tractors and camper vans

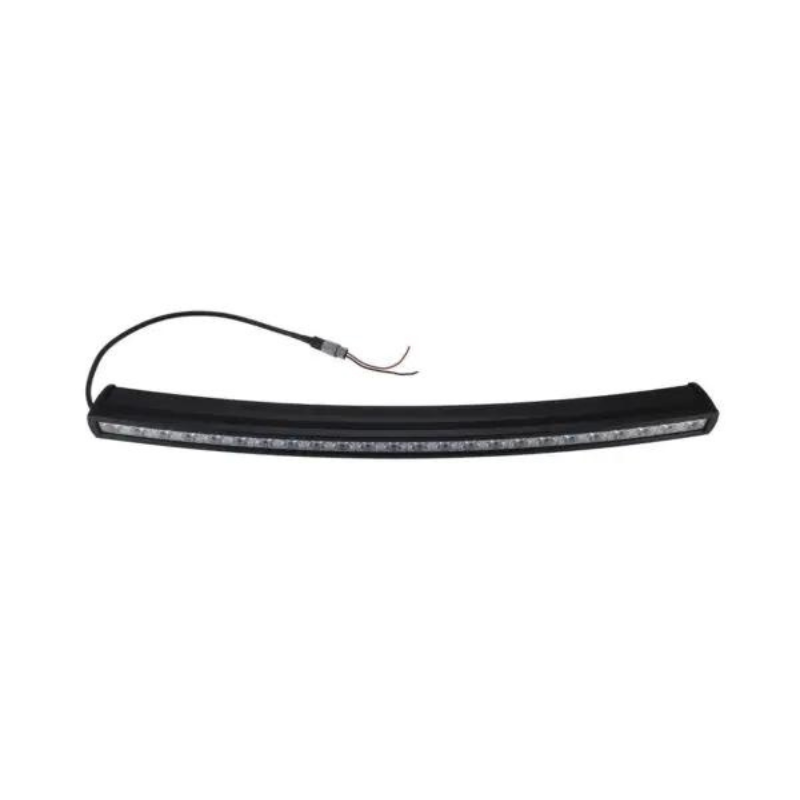

• Connector: Secure Deutsch DT 4-pin connector with an additional cable for easy setup
• LEDs: 16 x 10W high-power LEDs, combining white and amber lights for adaptable lighting conditions
• Adjustable Angle: Fully adjustable light angle for precise positioning based on task requirements
• Lifespan: Over 50,000 hours for long-term, reliable use
• IP Rating: IP68 dustproof and waterproof, ensuring durability in all weather
• EMC Certified: Meets EMC standards to avoid interference with other electronics

Technical Specifications

• Light Intensity: 14,400 lumens, providing robust illumination for wide-area coverage
• Light Colour: Dual white and amber, with amber particularly suited for foggy or dusty conditions
• Colour Temperature: 6000K (white) for cool, clear visibility and amber for enhanced penetration in poor visibility

Electrical Specifications

• Power Output: 160W
• Voltage Range: 9-30V, compatible with a broad range of vehicle systems

Dimensions (in mm)

• Lamp Width: 540 mm
• Lamp Height without Bracket: 70 mm
• Lamp Height with Bracket: 85 mm
• Lamp Depth: 80 mm
