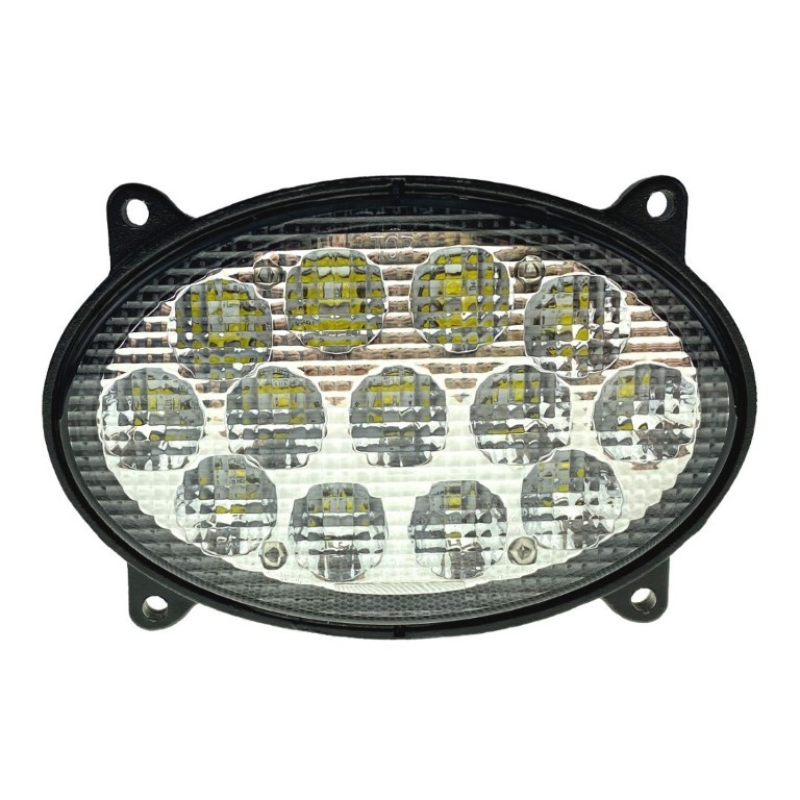

The CRAWER oval work light, compatible with most American John Deere tractors, features an easy installation with a 9005/9006 connector. This durable light, suitable for both indoor and off-road use, offers a wide 60-degree beam and multiple fire modes. Its robust, powder-coated aluminum housing is IP67 rated for water resistance. Equipped with 13 high-intensity 3-watt Cree LEDs and a PMMA finish, it suppresses EMC radio interference and boasts over 30,000 hours of use with a 3,000-lumen output.
Key Features
- Housing: Powder-coated aluminum
- Mounting material: stainless steel bracket
- Lamp finish: PMMA
- Connection: 9005/9006 identical connector
- Number of LEDs: 13 x 3W Cree LED
- Burning position: Adjustable, various positions possible
- IP rating: IP67 dust and immersion proof
- EMC Radio suppressed: CISPR Class 4
Specifications
- Light intensity: 3000 Lumen
- Light colour: Cold white
- Colour temperature: 6000K
- Beam angle: 60 degrees
- Power: 39W
- Voltage: 10-32V
DIMENSIONS IN MM
- Lamp width: 138 mm
- Lamp height: 93 mm
- Lamp thickness: 68 mm
Compatible John Deere Models
- 8120
- 8130
- 8220
- 8230
- 8245R
- 8270R
- 8295R
- 8320
- 8320R
- 8330
- 8330T
- 8345R
- 8420
- 8430
- 8430T
- 8520
- 8530
Original John Deere numbers: RE271574 / RE181282 / RE180613 / RE271573
