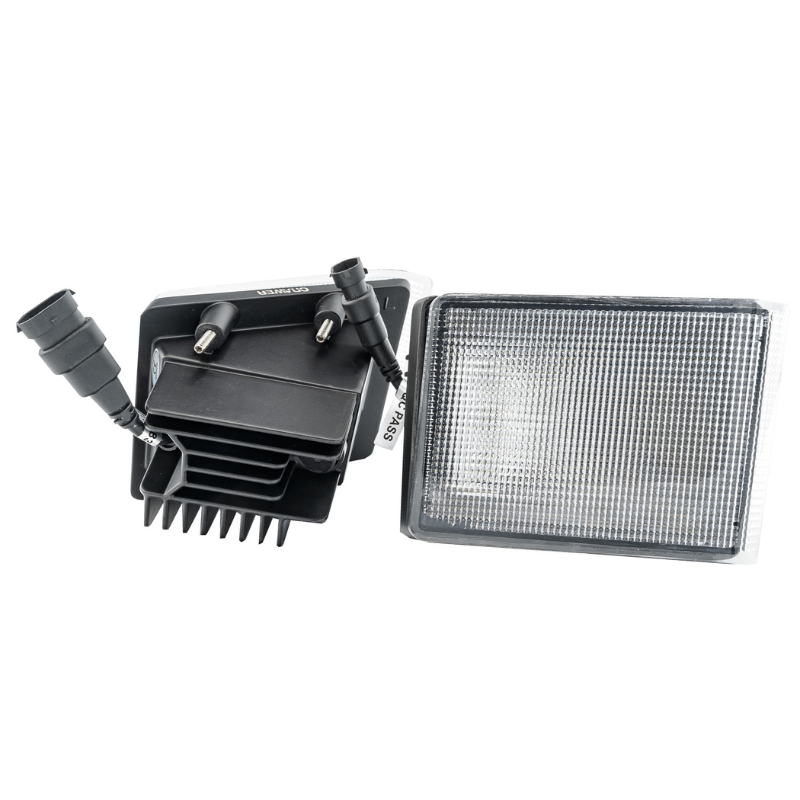

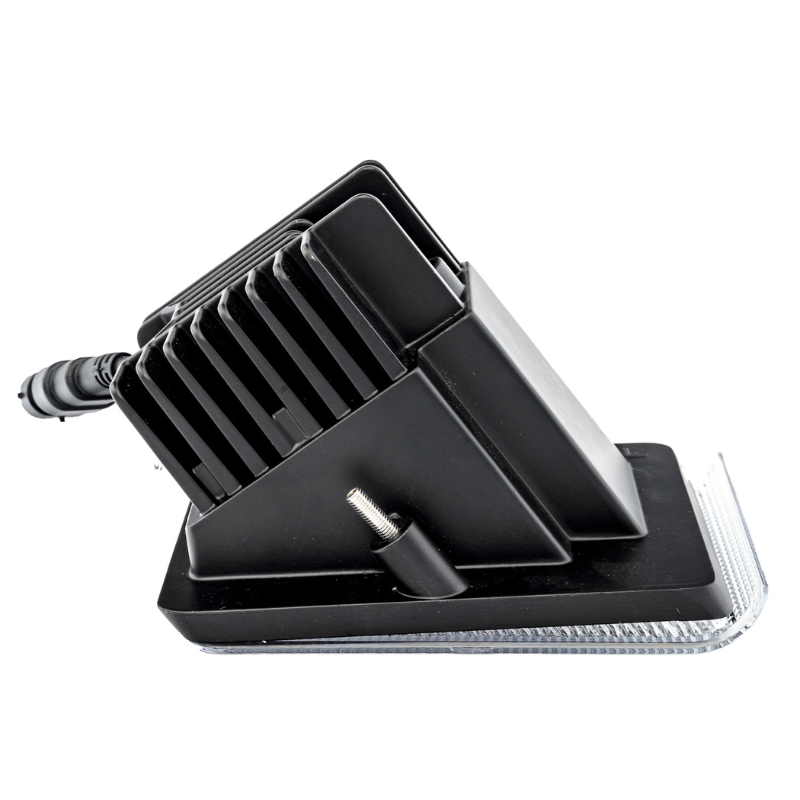

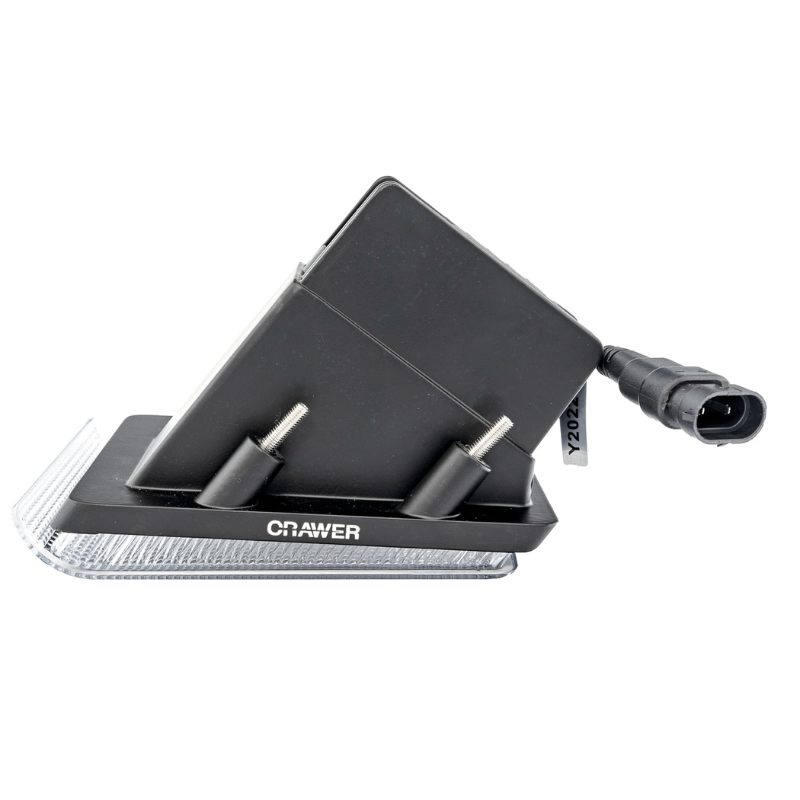

CRAWER LED 30W John Deere Work Light - CR-1061

The CRAWER LED work light set, tailored for John Deere series 7000 and 7010, integrates seamlessly into the tractor's hood as corner lights. This set, comprising distinct left and right lamps, enhances working visibility with 6 LED chips per lamp, producing 2700 lumens of cold white light at a 30-watt power consumption and a 60-degree beam angle, ensuring ample illumination.

Key Features

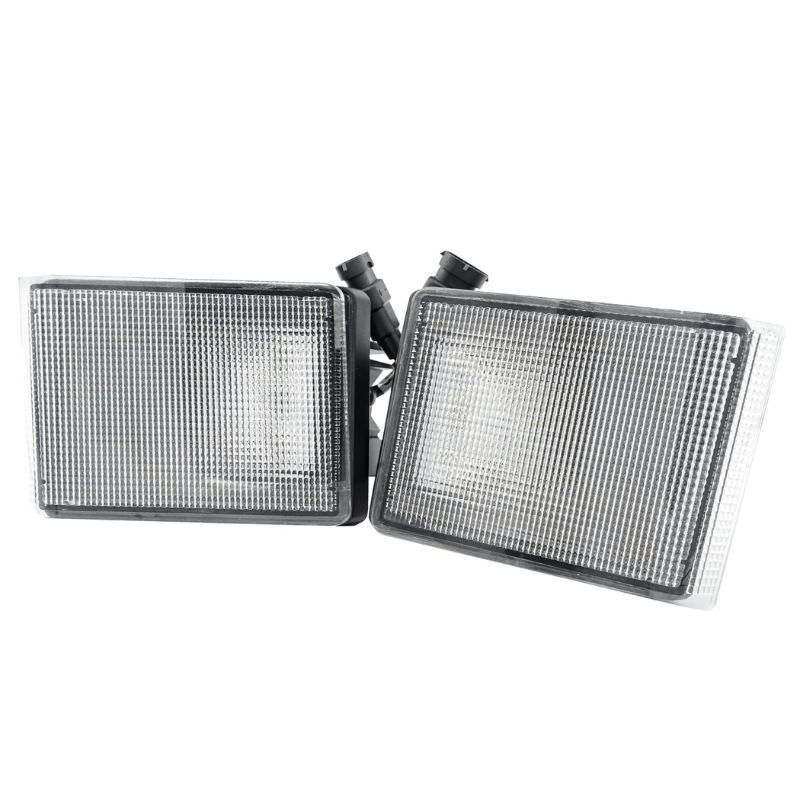

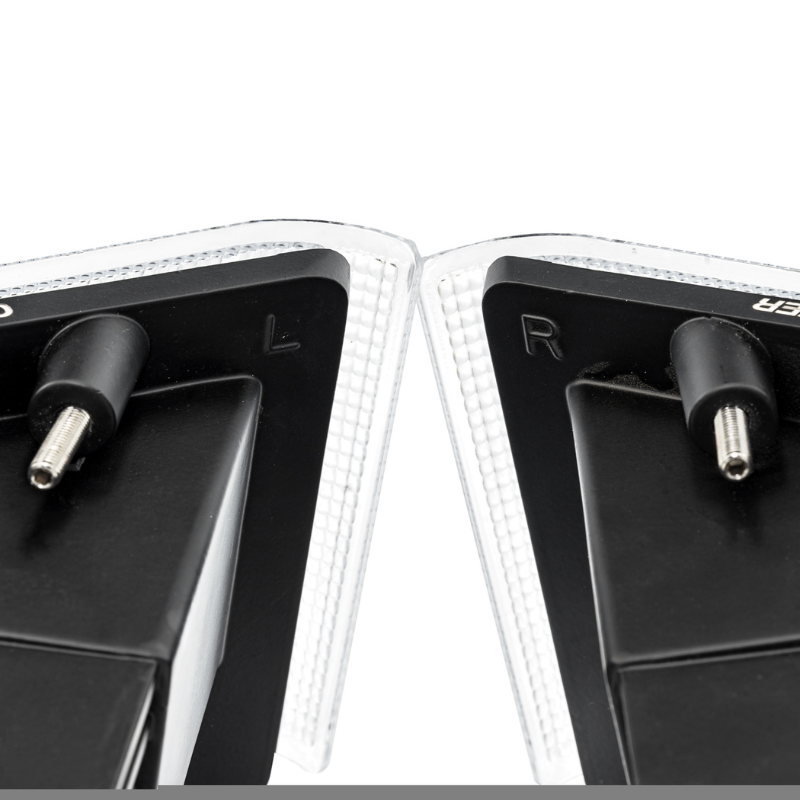

• Left and right lamp ( only available as a set of 2 )
• Housing: Powder-coated aluminum
• Lamp finish: hard coated polycarbonate lens
• Connection: H9 connector, identical connector
• Number of LED chips: 6
• IP rating: IP67 dust and waterproof
• EMC Radio interference suppressed CISPR Class 4

Specifications

• Light intensity per lamp: 2700 Lumen
• Light colour: Cold white
• Colour temperature: 5500K
• Beam angle: 60 degrees / work lamp
• Power per lamp: 30W
• Voltage: 10-32V

DIMENSIONS IN MM

• Lamp width: 131.2 mm
• Lamp height: 107.5 mm
• Lamp thickness: 148.2 mm
• See the image for the other dimensions

Compatible John Deere Models

• 7000
• 7010
