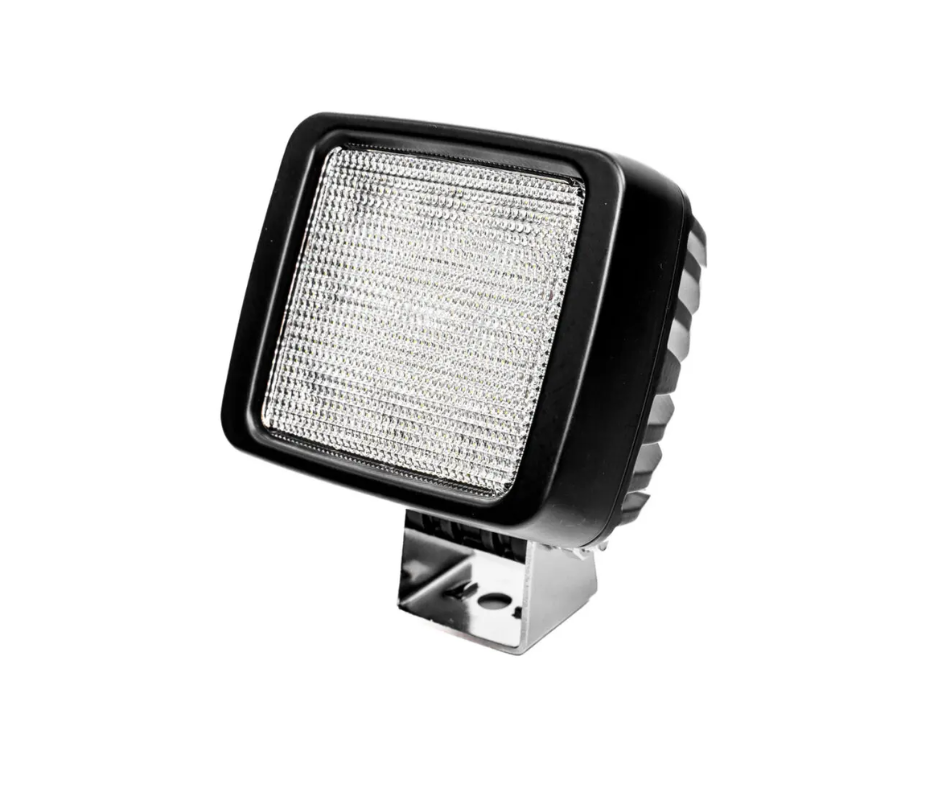

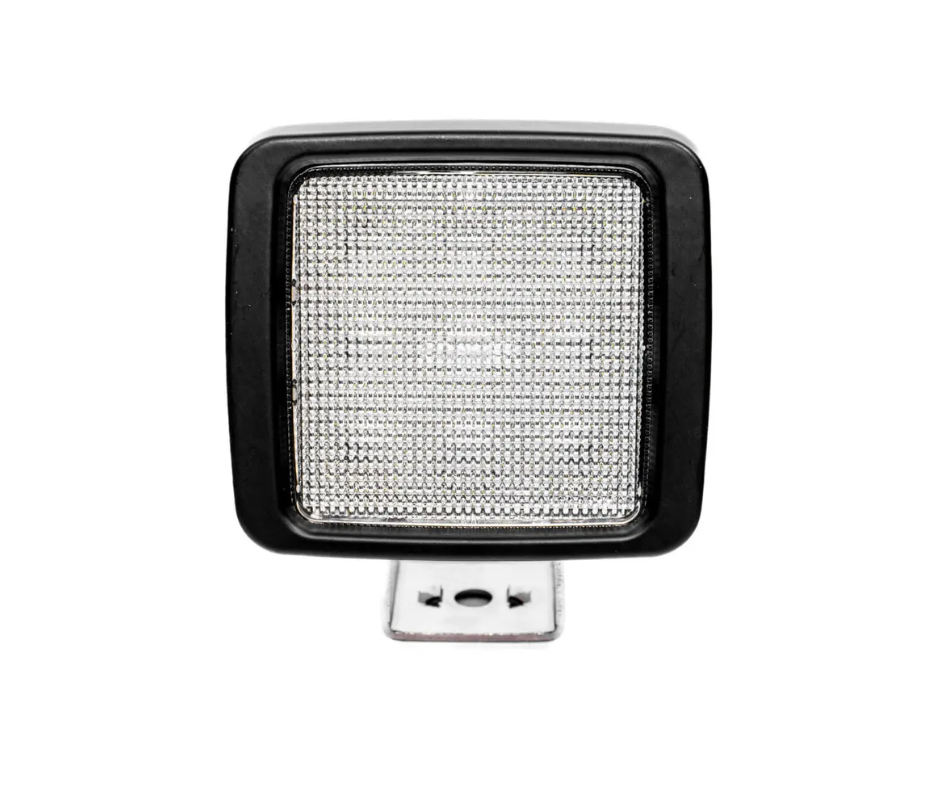

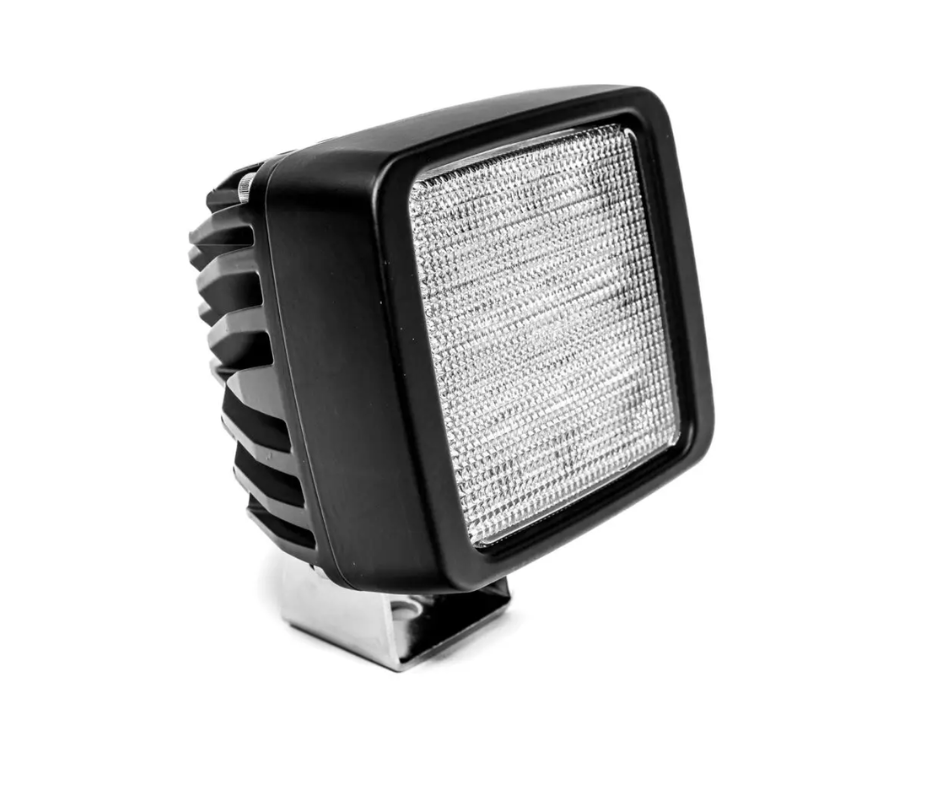

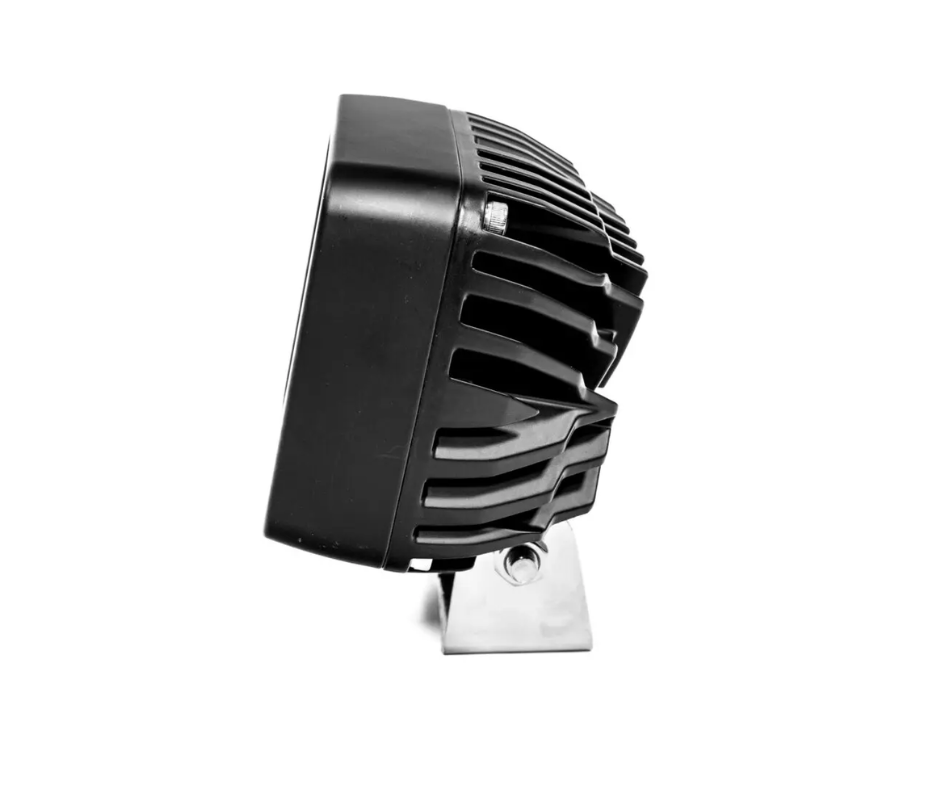

The CRAWER CR-1022-90 is a powerful 55W square LED work light designed to provide wide, even illumination around tractors and agricultural machinery. Producing an impressive 6,500 lumens through an extra-wide 90° flood beam, it's an excellent choice for applications where maximum coverage of the immediate working area is required.
Unlike narrower work lights designed to project light further into the distance, the CR-1022-90 spreads its output across a much broader area. This makes it particularly effective when mounted to the rear or sides of a tractor, helping illuminate implements, machinery and the surrounding working area during night-time operations.
Key Features
- CRAWER product code CR-1022-90
- Powerful 55W LED work light
- 6,500 lumen light output
- Extra-wide 90° flood beam
- Excellent close and medium-range illumination
- Ideal for side and rear work lighting
- 9–32V DC operating voltage
- Deutsch DT 2-pin connector
- CISPR Class 4 EMC suppression
- IP67 dust and water protection
- Die-cast aluminium housing
- UV-protected polycarbonate lens

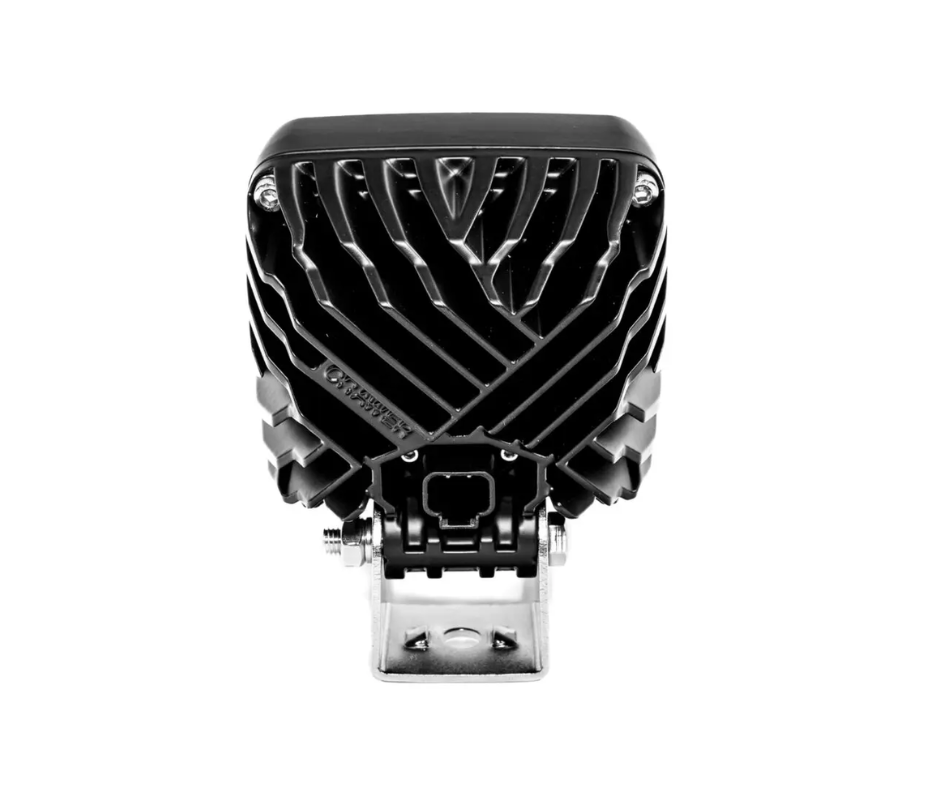

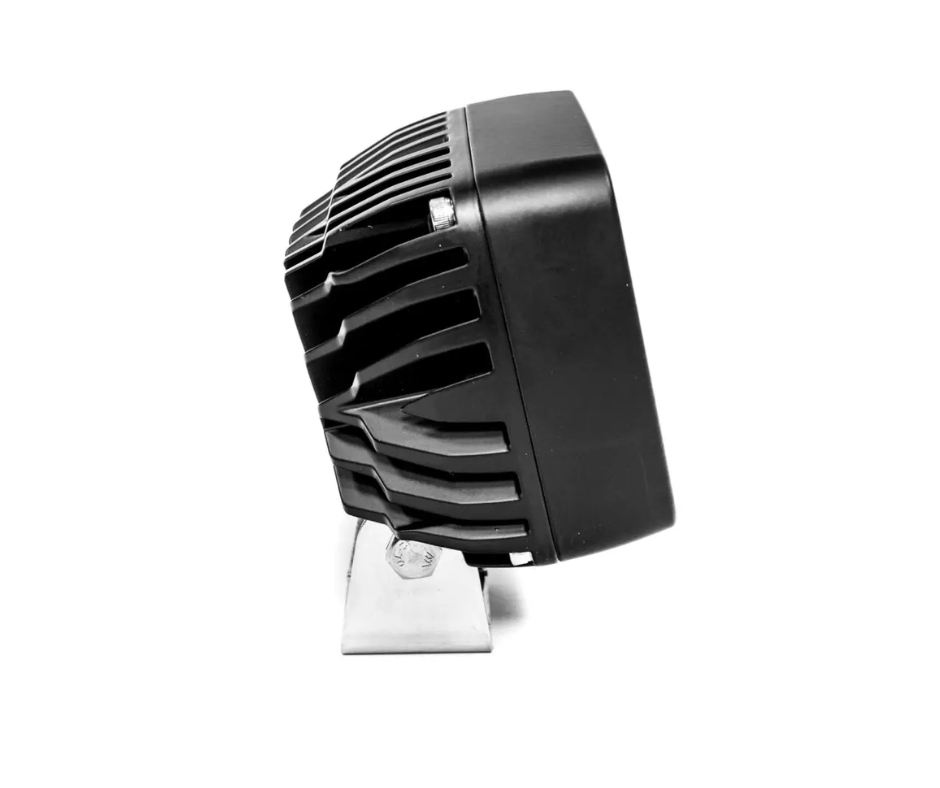

- Efficient heat-dissipating design

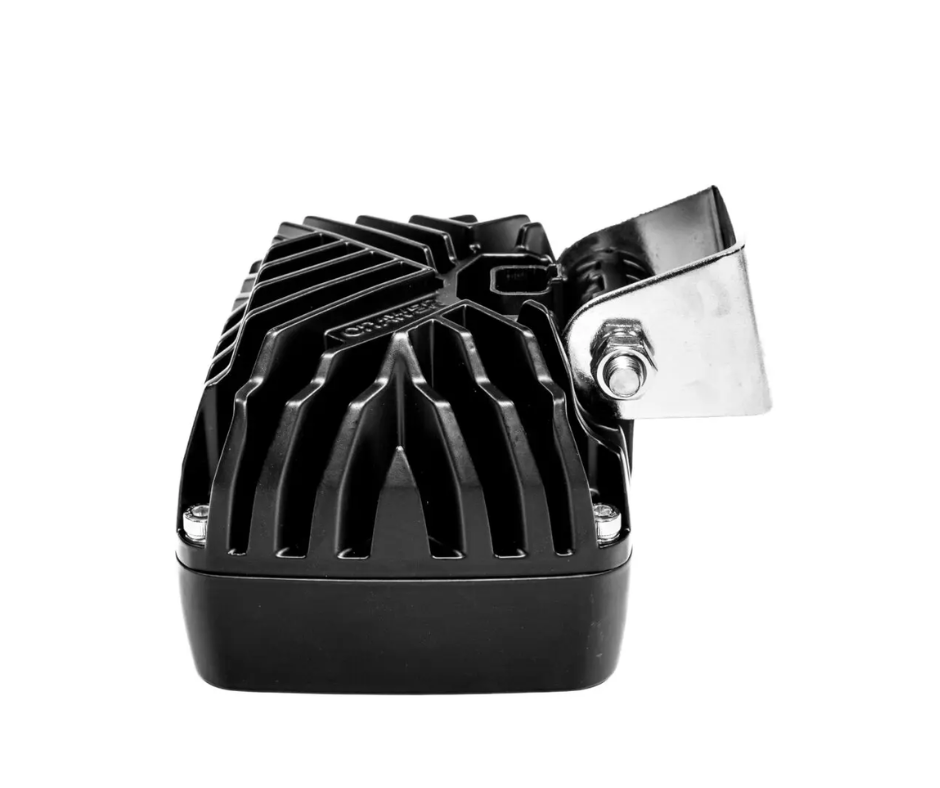

- Stainless steel mounting hardware
- E-Mark R10 approved
- CE and RoHS compliant
- Suitable for agricultural, construction and industrial machinery
Technical Specifications
Power: 55W
Light Output: 6,500 Lumens

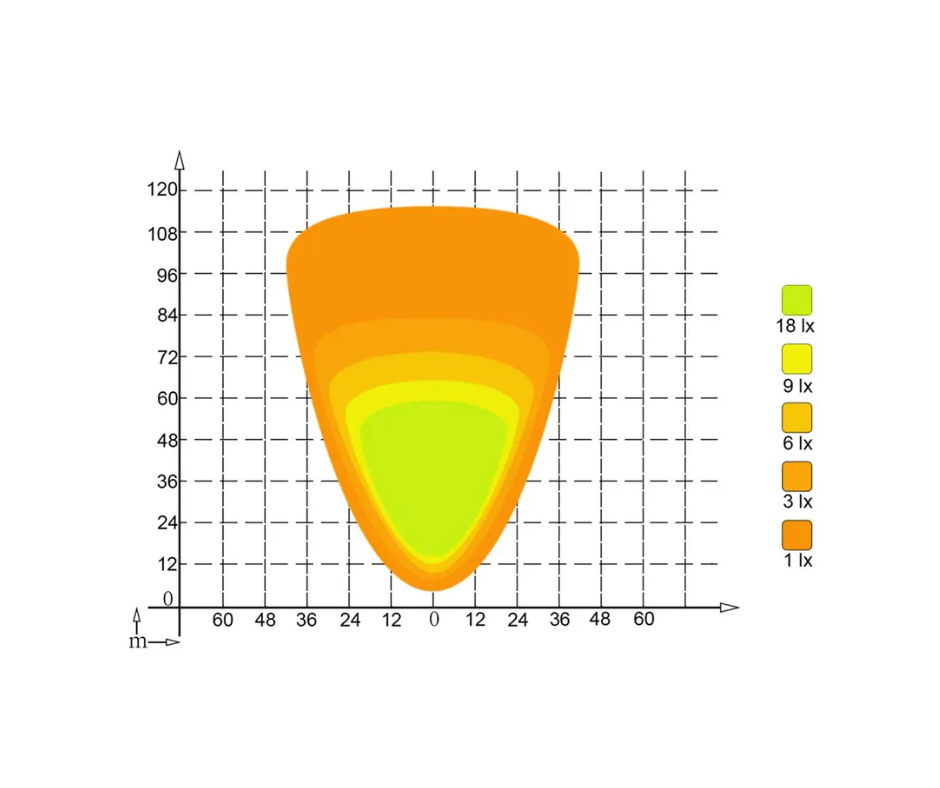

Beam Pattern: 90° Flood Beam
Operating Voltage: 10–30V DC
Connection: Deutsch DT 2-Pin
LEDs: 9 × Luminus LEDs
Housing: Die-Cast Aluminium
Finish: Black Powder Coated
Lens: UV-Protected Polycarbonate
Ingress Protection: IP67
EMC Suppression: CISPR Class 4
Operating Temperature: -40°C to +80°C
Approvals: CE, RoHS & E-Mark R10

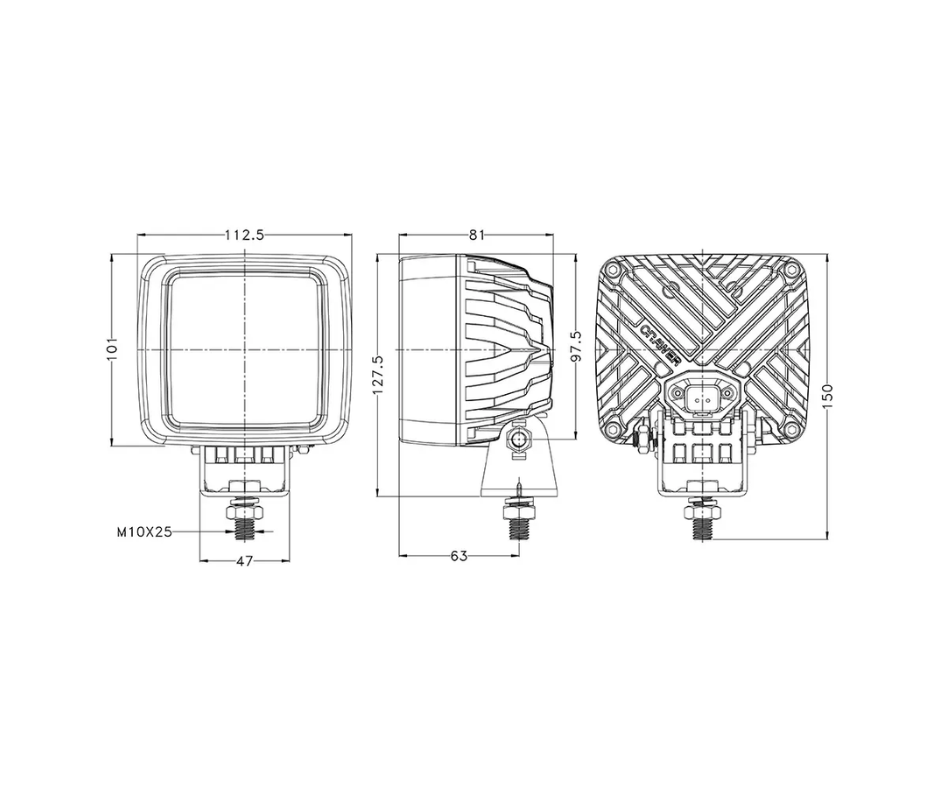

Weight: 958g
Width: 112.5mm
Height: 101mm
Depth: 81mm
Bolt Spacing: 41.5mm
Which Beam Should I Choose?
The CR-1022 range gives you the option to choose the beam pattern that best suits the position of the light:
CR-1022-40 – 40° Beam
A more focused beam designed to project light further ahead. Ideal for forward-facing positions where longer-distance visibility is important.
CR-1022-60 – 60° Beam
A balanced flood pattern providing a combination of width and distance. A versatile option for general work lighting.
CR-1022-90 – 90° Beam
The widest beam option, spreading light across a much larger working area. Ideal for rear and side-mounted positions, implements and close-range illumination.

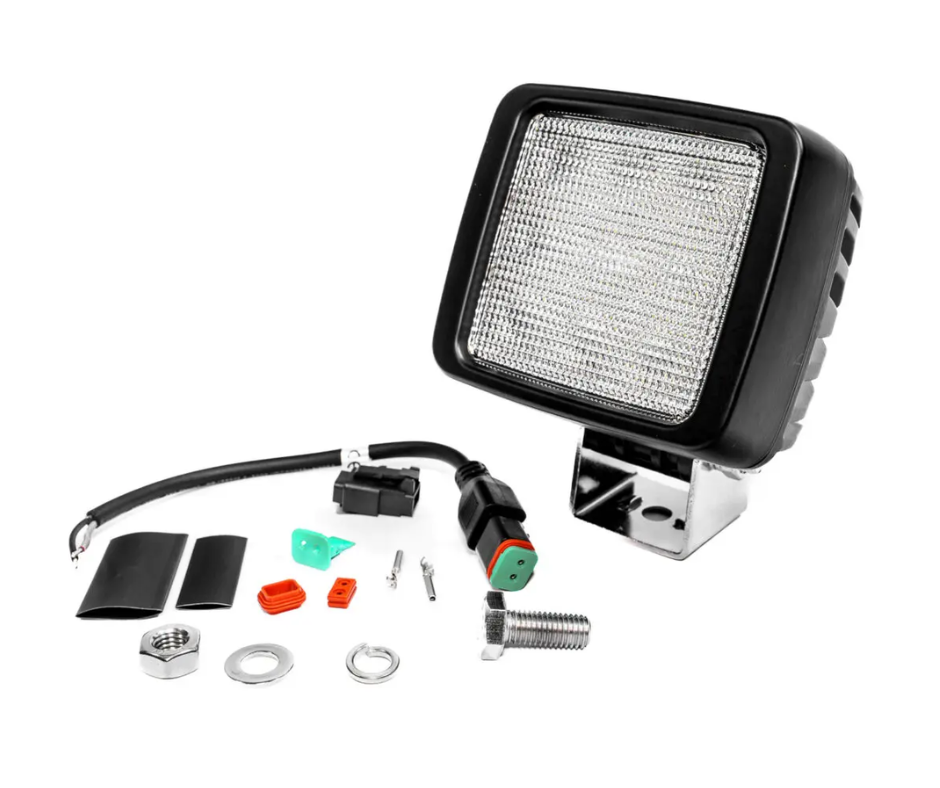

What's Included
- 1 × CRAWER CR-1022-90 55W Square LED Work Light
- Mounting bracket/hardware
- 30cm connection cable
